MSIPS-R1 Safety Connection

An exemple of safety connection with the MSIPS-R1.

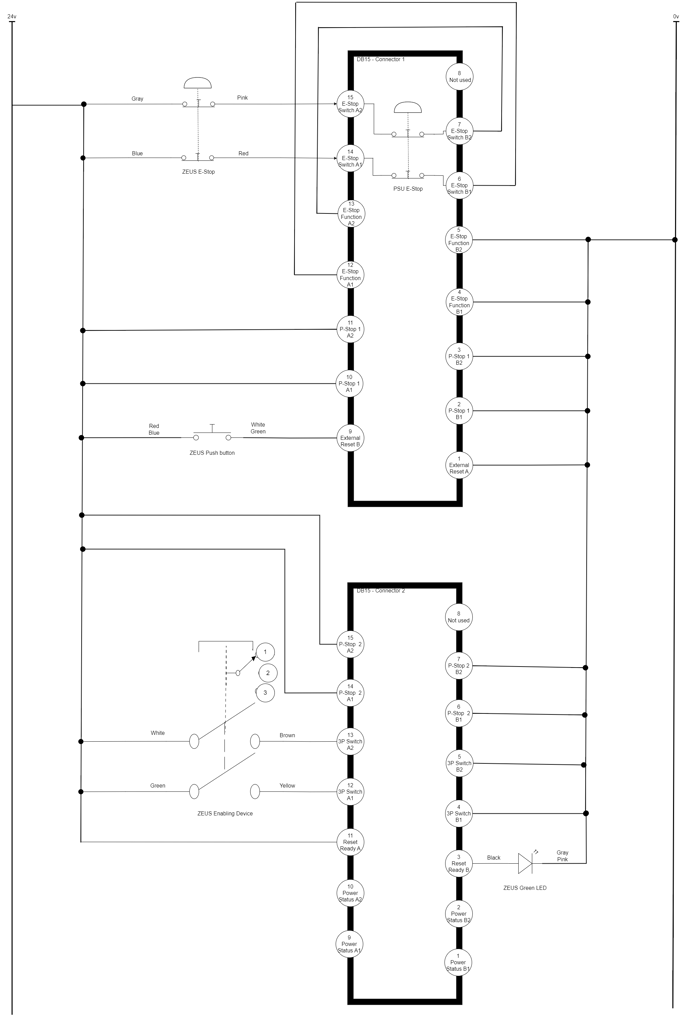

In this diagram, an external E-Stop button, a reset button as well as a 3-position grip switch (Deadman switch) is connected to the MSIPS-R1.

The P-Stop 1 and P-Stop 2 circuit are unused.



MSIPS-R1 Safety Wiring
