How do I connect the Safety IO on the Meca500 Power Supply?

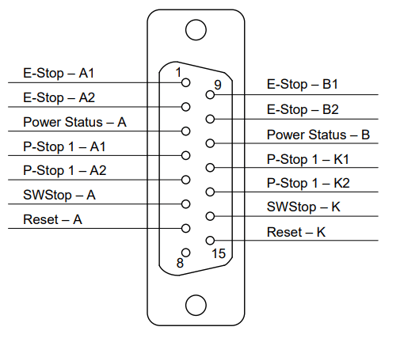

Figure 1 shows the pinout of the D-SUB 15-position connector on the power supply and Figure 2 gives a generic example for all connections. With the DSUB15 safety IO port, you can connect:

- one external Stop Category 1 emergency stop (connections E-Stop - A1, E-Stop - B1, E-Stop - A2, E-Stop - B2);

- one Stop Category 1 protective stop (connections P-Stop 1 - A1, P-Stop 1 - K1, P-Stop 1 - A2, P-Stop 1 - K2);

- one reset button (connections Reset - A, Reset - K);

- one power status indicator (connections Power Status - A, Power Status - B);

- one Software Stop (connections SWStop - A, SWStop - B).

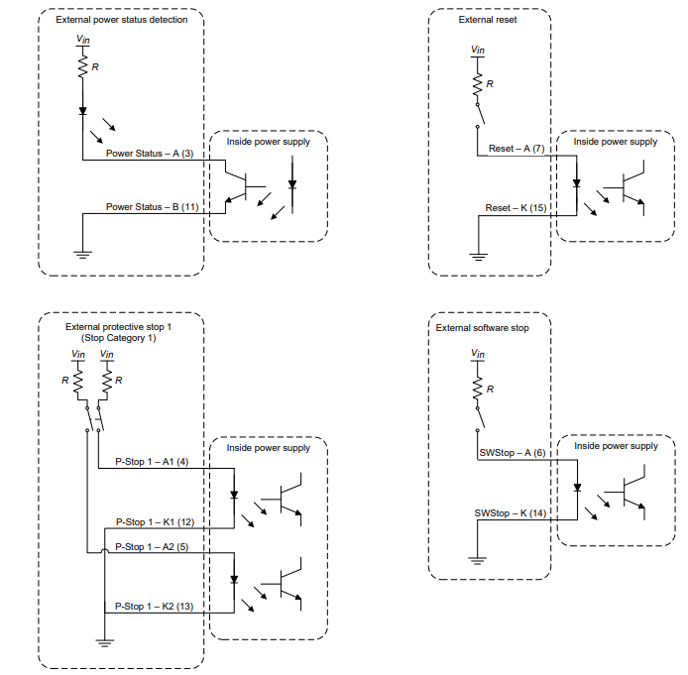

Generic wiring example :

Resistances are MANDATORY for the Meca500 R3 (1k Ohm, 0.5 W)

Connection example with a PLC I/O using 24V DC

Take note that the Ext E-STOP and Protective Stop 1 are both NC type while Software Stop is NO type. Hence, if not used they have to be either short (for Ext. E-STOP) or must be closed with a bypass resistor as below
